Custom Diesel and Gas Generator Sets

Custom Diesel and Gas Generator Sets

In addition to our standard models of diesel and gas generator sets, our specialty also lies in customizing any genset to meet your specific needs. Tell us your requirements, so that we can customize the very suitable generator set for you by modifying and assembling. We guarantee quality and performance even in extreme working conditions.

Request a Quote

• Power range: 10-3300kVA, 50Hz or 60Hz
• Working temperature: -50℃~+50℃
• Specially designed sound enclosure that prevents dust and sand from getting inside, blocks noise from getting outside, suitable for extreme environments like desert or gobi. Noise intensity is kept within 60.3-75dB(A)@7m.
• Separation installation of diesel generator sets and water tank ensures good running condition at environments with poor ventilation.
• Special surface treatment will be carried out for generators deployed at coastal areas or islands, to resist salt and sea spray.
• Dual-wall fuel tank is incorporated into the base frame, and oil sump is provided at container floor to prevent oil leakage and reduce fuel consumption.

Containerized Generator Set

• Based on standard 20'/40' containers, flexible and convenient assembly and deployment;
• Inner walls and ceiling of the container are covered with acoustic absorbers and perforated metal panels;
• Built-in compact and high-performance industrial silencer;
• Noise intensity within 70-80db (A) @7m;
• Control room, oil supply system and illuminating system are equipped inside the container, and extra space for servicing is reserved as well;
• Good rustproof performance is guaranteed by using anodized aluminum hinges and specially processed screws and bolts;

Generator Truck

• Built on the basis of a truck, great flexibility and convenience;
• Up to 500kW powerful diesel generator set;
• Electric-drive cable capstan, quick connection plugs, built-in control room and toolbox;
• Can be applied for emergency operations of power supply bureaus, telecom operators, etc.
• Easy and convenient operation, suitable for various situations;

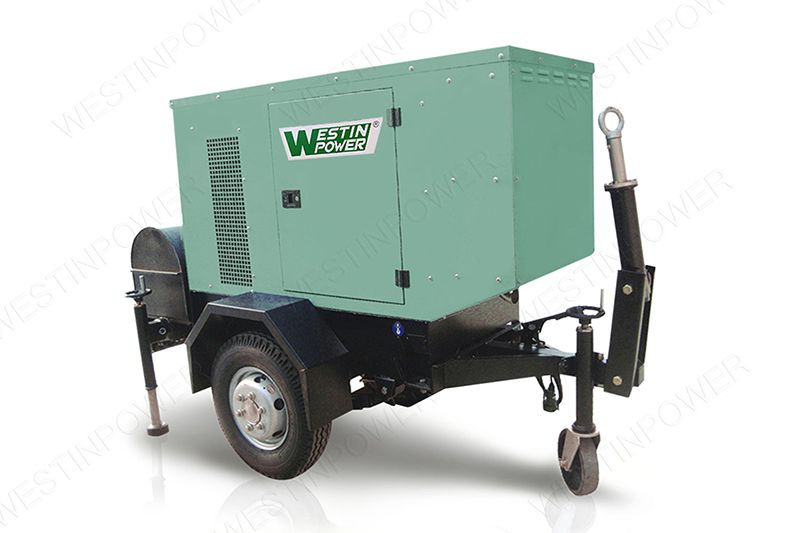

Trailer Mounted Generator Set

• Specially designed mobile generator set, satisfying requirements of power supplying for on-field works;
• Applying 2-wheel or 4-wheel trailer according to generator set power;
• The trailer equips spring shock absorber and double braking system to ensure the operation safety;
• Options of waterproof enclosure or soundproof enclosure are available, both have access door and inspection window;
• Trailer is equipped with support stands, with which the generator set’s position could be adjusted horizontally on a slope;
• Optional cable capstan and quick connection plugs;

Silent Generator Set

• With novel materials and advanced techniques, noise intensity is kept within 60.3-75db(A)@7m;
• With residential silencer, exhaust noise from generator is excessively reduced;
• The enclosure is designed with control panel, inspection window and 3 access doors;
• Fuel tank can be incorporated into the generator set base frame;

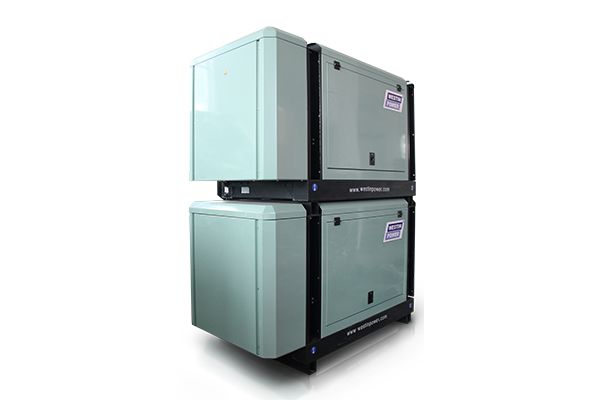

Double-Stack Generator Set

• Optimal design;
• Concise style and compact structure, space saving and easy to transport;
• Suitable for <20kVA small scale generator set;

HAT700 ATS

HAT700 ATS controller is a dual-supply module combining digital, intelligence and networking. It is configurable, offers functions including automatic measurement, LCD display, and digital communication. Automatic measurement and control can reduce incorrect operation.
HAT700 is an ideal choice for ATS.

ATS Cabinet

ATS cabinet is applied to automatically switch prime and emergency powers. When prime power is off, loads such as emergency illumination, security power and firefighting equipment are switched to generating sets automatically. ATS cabinet is essential for hospital, bank, telecom facility, airport, broadcasting station, mine, power plant, factory, etc.
Current range: 32A~3200A
